Fiber Optic Management System
Fiber Optic Locate and Monitoring System is a powerful combination of fixed 50W FLS transmitter, vLocPro2 / vLocML2 Receiver with Signal Direction, Bluetooth, GPS and Sheath Fault Locating 'A-Frame'.
- Fixed installation of FLS transmitter in Telecom Rack
- Long distance signal tone up to 100 Kms.
- Need to carry only vLocPro2 / vLocML2 receiver in the field to find the location
- 'Signal Direction' features aids for positive line identification
- Bluetooth connected GPS; gives GPS co-ordinates display on the receiver screen
- Bright colour display helps operator to work in any light condition including bright sunny day
- 360 Deg. rotating compass helps to mark the orientation of cable
- Find Sheath Fault Location by using the 'A-Frame'
- App. 1000 data rocording facility
- When GPS activated; data recorded with Date & Time stamping, latitude & longitude, distance, total distance,
depth, current, frequency and signal direction status
- Download data in .excel, .txt, . shape & .kml format
- License free web based application & management software
- Free updates through internet
- Chargeable 'Service Locator' facility in case of problem with equipment
- Post supplies demonstration and training is included as standard
- Total repair & calibration facility in India at Ghaziabad (U. P.)
- Yearly Calibration facility in India by OEM Calibration Rig at nominal cost

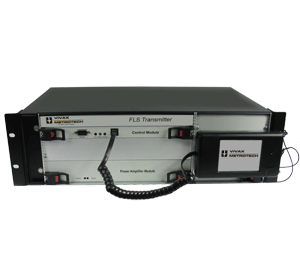

Fiber Optic Locate (FLS) 50W TransmitterThe FLS is a high performance long distance fiber optic cable locating and monitoring transmitter. As a central office or regen rack mounted system, the FLS offers a full 50 watts of output. The FLS can be used for long-haul fiber lines and metropolitan loop networks. All features may be accessed remotely or locally with the hand-held touch screen.
The FLS system increases revenue by increasing customer confidence and loyalty. It's a critical component on the fiber support network, striving to reduce downtime, increase reliability and reduce third part damage and at the same time increasing workplace efficiency and reducing maintenance costs.

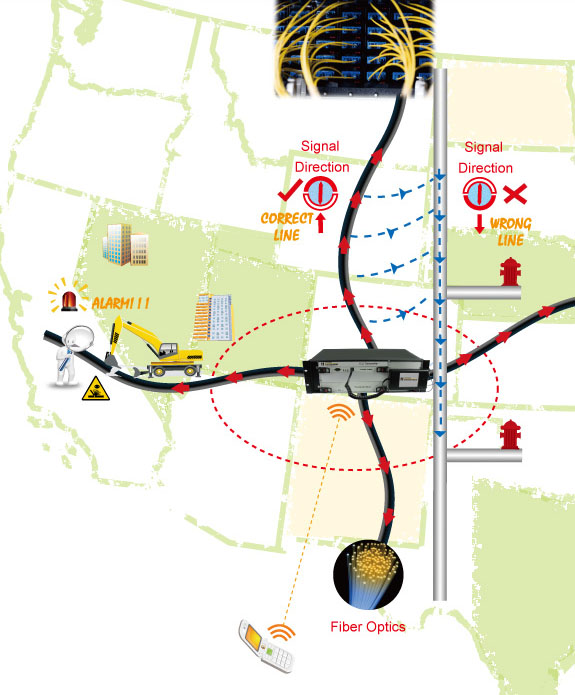

FLS-4 Way Signal Distribution Diagram OverviewFLS 50W transmitter comes for 2 Way / 4 Way & 16 Way cable distribution network. One transmitter for locate tone signal upto 100 Kms. in one direction. Say, 2 Way transmitter can take care of app. 200 Kms. cable network (100 Kms. in each direction).
- No need to keep it ON permanently.
- Can be switched ON after reaching the site by calling the transmitter from mobile phone.
vLocPro2 ReceiverThe vLocPro2 system provides the functionality required by experienced field and the simplicity needed by novices. The system has a classic look with an intuitive user interface designed to minimize training needed when transition from other manufacturers.
Designed by engineers experienced in the field of location and incorporating ideas and feedback from customers, the product addresses many of the shortcomings of locators.
vLocML2 ReceiverThe vLocML2 is a multi-purpose cable and pipe locator with a factory installed option to locate various buried passive “EMS markers” as used by utility owners. The unit is recognizable by the carbon fiber collar near the base of the antenna tube. Other manufacturers use clumsy fold down antennas, or heavy internal ferrite antennas. The best solution is a permanently mounted lightweight carbon fiber encased antenna.

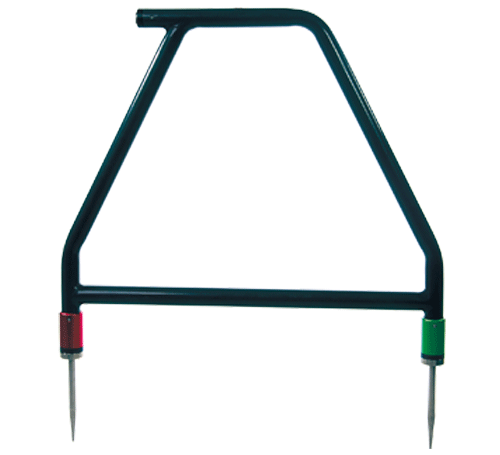

Sheath Fault Finding 'A-Frame'Need to connect with vLocPro2 / vLocML2 receiver for finding the sheath fault location. Up-ward GREEN arrow guides towards the fault position and down-ward RED arrow warns the operator about fault crossed. Please have a look on above shown vLocPro2 display.
Support and Sevices
GIC provides 'best in class' support and services by understanding the importance of locating the cable for location and fault position as a 'Back-Bone' of your system.
- Chargeable 'Service Locator' facility in case of problem with equipment
- Post supplies demonstration and training is included as standard
- Total repair & calibration facility in India at Ghaziabad (U. P.)
- Yearly Calibration facility in India by OEM Calibration Rig at nominal costDemonstration cum Trial offer / order
GIC welcome the customer interest for understanding the FLS system working and it's cost-effective advantages. GIC offer one month demonstration cum trial offer / order at a nominal cost. In case, customer is satisfied with it's performance and place the firmed purchase order than GIC will offer discount equivalent to trial monthly charges.
